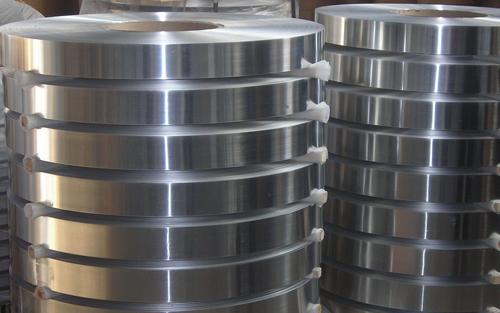

sales@tjhlv.com高压铝带 Transformer High-voltage Aluminum Strip
| 产品名称 Product name |
干式变压器高压铝带 Transformer High-voltage Aluminum Strip |
| 产品用途 Product application field |
用于干式变压器高压线圈 Used for high voltage coil of dry-type transformer |
| 主要技术参数 Main technical parameters |
导电率大于61%，抗拉强度小于75Mpa; The conductivity is greater than 61%, and the tensile strength is less than 75Mpa; |
| 尺寸范围mm Size range |
厚度0.15mm-1.5mm，宽度30mm-200mm； thickness 0.15mm-1.5mm, width 30mm-200mm; |
| 卷内径mm I.D |
150/300/400/500mm |
| 尺寸公差 Dimensional tolerance |
厚度公差在标称厚度的±5%以内；宽度公差根据订单要求分切。 The thickness tolerance is within ±5% of the nominal thickness; The width tolerance is cut according to the order requirements. |
| 包装形式 Packaging form |

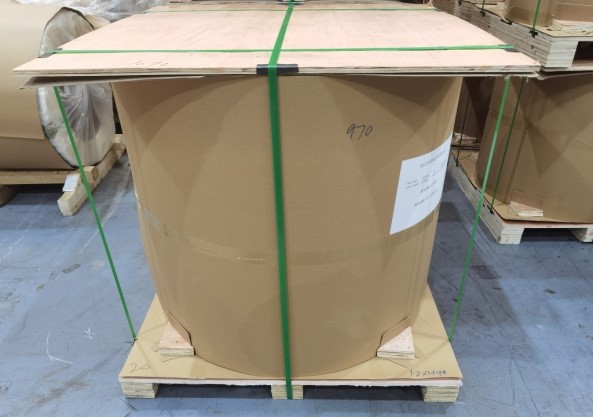

木托，符合海运和陆运要求。 Wooden tray, meets the requirements of sea and land transportation. |

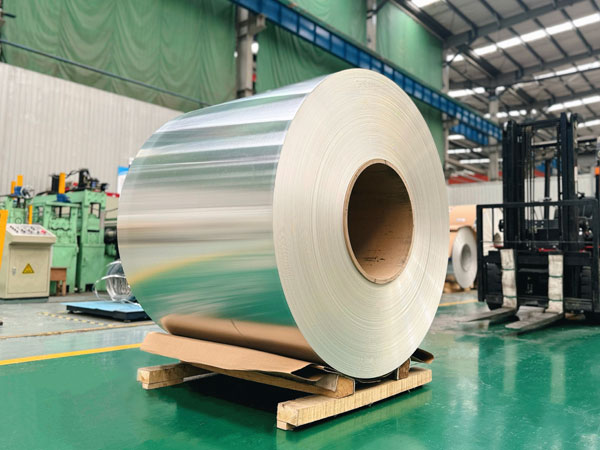

低压铝箔 Transformer Low-voltage Aluminum coil
| 产品名称 Product name |
变压器低压铝箔 Transformer Low-voltage Aluminum coil |
| 产品用途 Product application field |
用于变压器低压线圈 Used for Low-voltage coil of transformer |
| 主要技术参数 Main technical parameters |
导电率大于61%，抗拉强度小于75Mpa; The conductivity is greater than 61%, and the tensile strength is less than 75Mpa; |
| 尺寸范围mm Size range |
厚度0.3mm-3.0mm，宽度200mm-1500mm； thickness 0.3mm-3.0mm, width 200mm-1500mm; |
| 卷内径mm I.D |
300/400/500mm |
| 尺寸公差 Dimensional tolerance |
厚度公差在标称厚度的±5%以内；宽度公差根据订单要求分切。 The thickness tolerance is within ±5% of the nominal thickness; The width tolerance is cut according to the order requirements. |

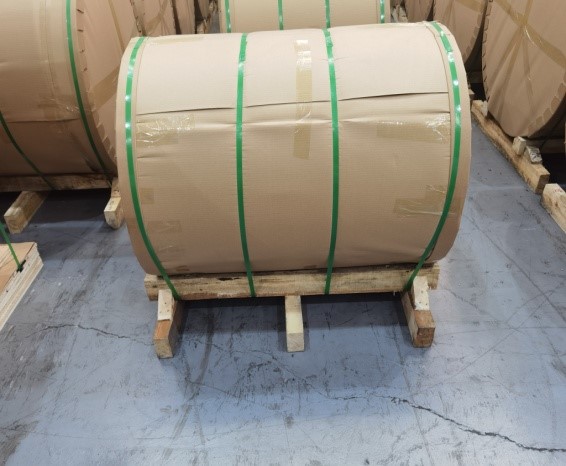

| 包装形式 Packaging form |
木托，符合海运和陆运要求。 Wooden tray, meets the requirements of sea and land transportation. |

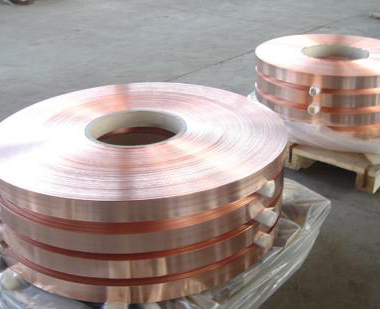

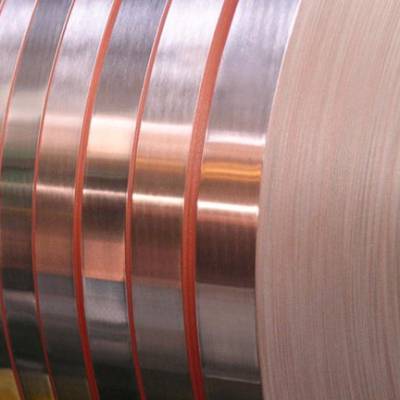

高压铜带 Transformer High-voltage Copper Strip
| 产品名称 Product name |
干式变压器高压铜带 Transformer High-voltage Copper Strip |
| 产品用途 Product application field |
用于干式变压器高压线圈 Used for high voltage coil of dry-type transformer |
| 主要技术参数 Main technical parameters |
导电率大于98%，抗拉强度小于245Mpa;硬度HV45-65 The conductivity is greater than 98%, and the tensile strength is less than 245Mpa; Hardness HV45-65 |
| 尺寸范围mm Size range |
厚度0.2mm-1.5mm，宽度20mm-200mm； thickness 0.2mm-1.5mm, width 20mm-200mm; |
| 卷内径mm I.D |
150/300/400/500mm |
| 尺寸公差 Dimensional tolerance |
厚度公差在标称厚度的±5%以内；宽度公差根据订单要求分切。 The thickness tolerance is within ±5% of the nominal thickness; The width tolerance is cut according to the order requirements. |
| 包装形式 Packaging form |
木托，符合海运和陆运要求。 Wooden tray, meets the requirements of sea and land transportation. |

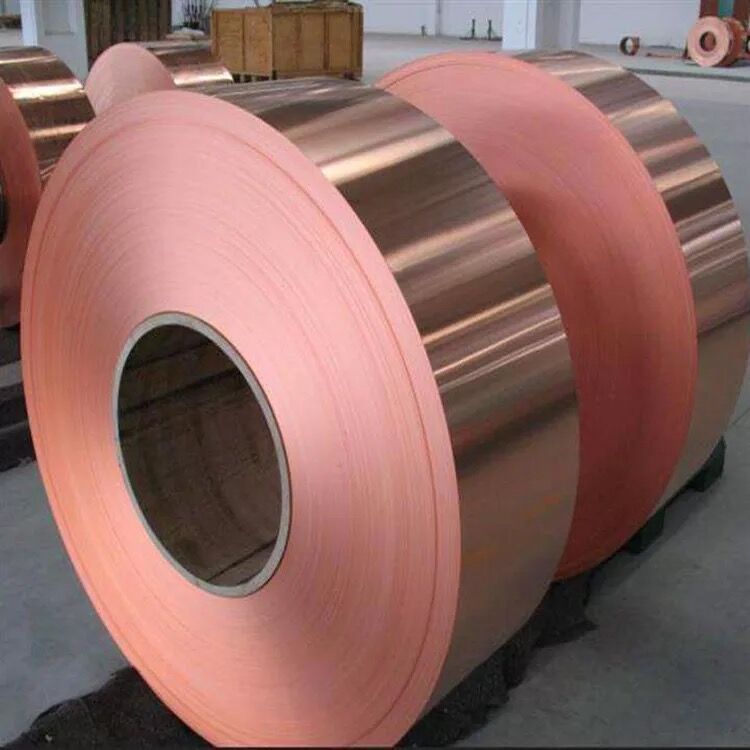

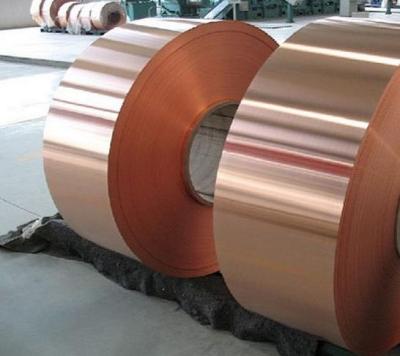

低压铜箔 Transformer Low-voltage copper coil
| 产品名称 Product name |
变压器低压铜箔 Transformer Low-voltage copper coil |
| 产品用途 Product application field |
用于变压器低压线圈 Used for Low-voltage coil of transformer |
| 主要技术参数 Main technical parameters |
导电率大于98%，抗拉强度小于245Mpa;硬度HV45-65 The conductivity is greater than 98%, and the tensile strength is less than 245Mpa; Hardness HV45-65 |
| 尺寸范围mm Size range |
厚度0.3mm-3.0mm，宽度200mm-1200mm； thickness 0.3mm-3.0mm, width 200mm-1200mm; |
| 卷内径mm I.D |
300/400/500mm |
| 尺寸公差 Dimensional tolerance |
厚度公差在标称厚度的±5%以内；宽度公差根据订单要求分切。 The thickness tolerance is within ±5% of the nominal thickness; The width tolerance is cut according to the order requirements. |
| 包装形式 Packaging form |
木托，符合海运和陆运要求。 Wooden tray, meets the requirements of sea and land transportation. |

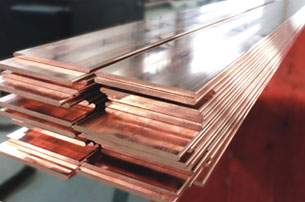

电工铜排 Electrical copper bar
| 产品名称 Product name |
电工铜排 Transformer Electrical copper bar |
| 产品用途 Product application field |
用于变压器 Used for transformer |
| 主要技术参数 Main technical parameters |
导电率大于98%，硬度HV65以上 Conductivity greater than 98%, hardness greater than HV65 |
| 尺寸范围mm Size range |
厚度2.0mm-20mm，宽度20mm-220mm； thickness 2.0mm-20mm, width 20mm-220mm; |
| 边部形状 Edge shape |
直角边和圆边 Right and round edges |
| 尺寸公差 Dimensional tolerance |
符合国标GB/T5585 Conform to the national standard GB/T5585 |

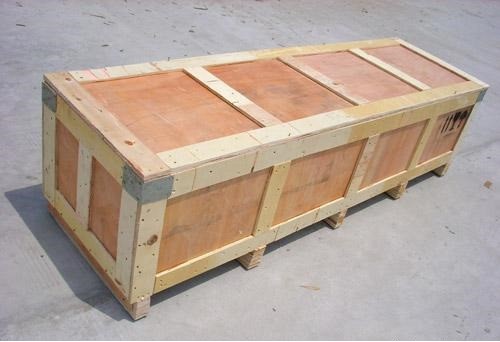

| 包装形式 Packaging form |
木托，符合海运和陆运要求。 Wooden tray, meets the requirements of sea and land transportation. |

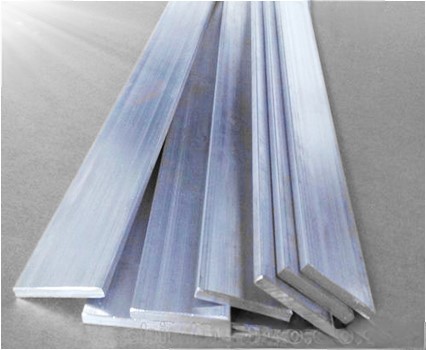

电工铝排 Electrical aluminum bar
| 产品名称 Product name |
电工铝排 Electrical aluminum bar |
| 产品用途 Product application field |
用于变压器 Used for transformer |
| 主要技术参数 Main technical parameters |
导电率大于60%，硬度HV23以下 Conductivity greater than 60%, hardness less than HV23 |
| 尺寸范围mm Size range |
厚度3.0mm-20mm，宽度20mm-220mm； thickness 3.0mm-20mm, width 20mm-220mm; |
| 边部形状 Edge shape |
直角边和圆边 Right and round edges |
| 尺寸公差 Dimensional tolerance |
符合国标GB/T5585 Conform to the national standard GB/T5585 |
| 包装形式 Packaging form |
木托，符合海运和陆运要求。 Wooden tray, meets the requirements of sea and land transportation. |

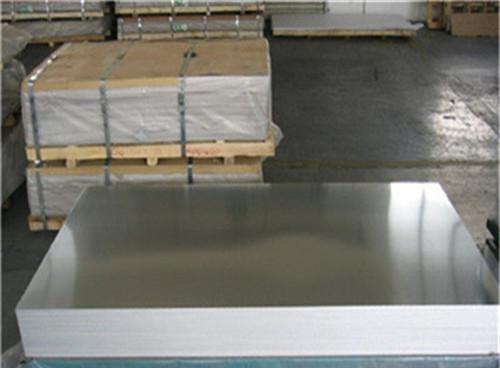

铝板 Aluminum sheet
| 产品名称 Product name |
铝板 Aluminum sheet |
| 合金牌号 Alloy grade |
1060/3003/5052/5083/6061/6063/7075 |
| 表面 Surface |

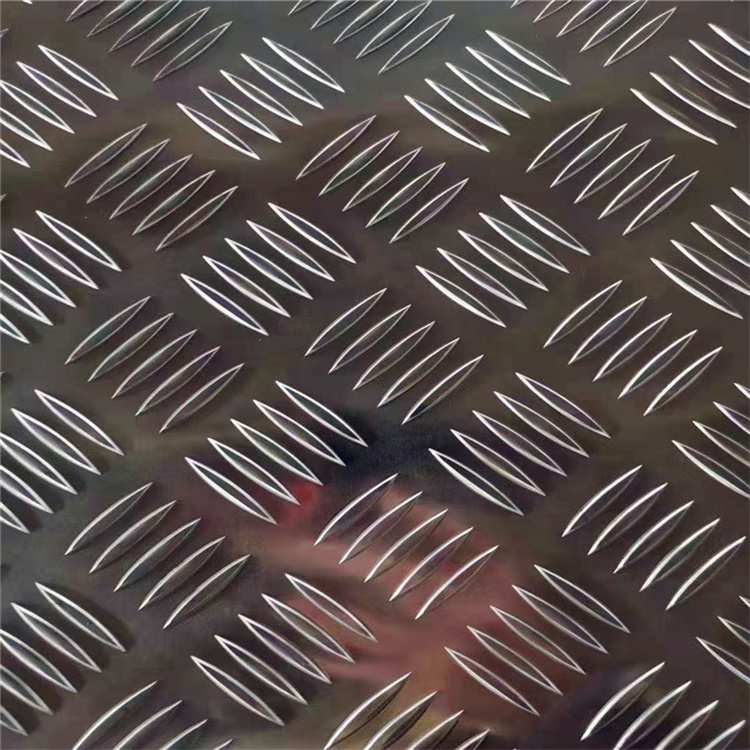

可提供亮面，各种花纹等 Can provide bright surface and various patterns |
| 尺寸范围mm Size range |
厚度0.5mm-200mm，宽度100mm-1500mm； thickness 0.5mm-200mm, width 100mm-1500mm; |

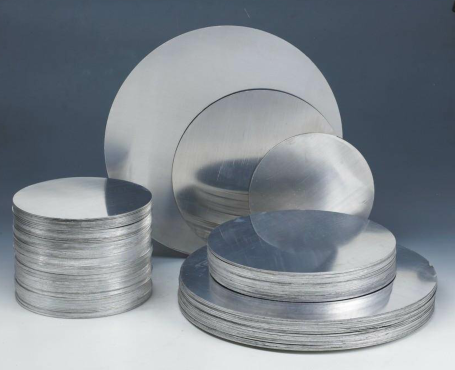

| 形状 Form |
正方形，长方形，圆形 Square, rectangle, circle |
| 尺寸公差 Dimensional tolerance |
符合国标GB/T3880 Conform to the national standard GB/T3880 |
| 包装形式 Packaging form |
木托，符合海运和陆运要求。 Wooden tray, meets the requirements of sea and land transportation. |
